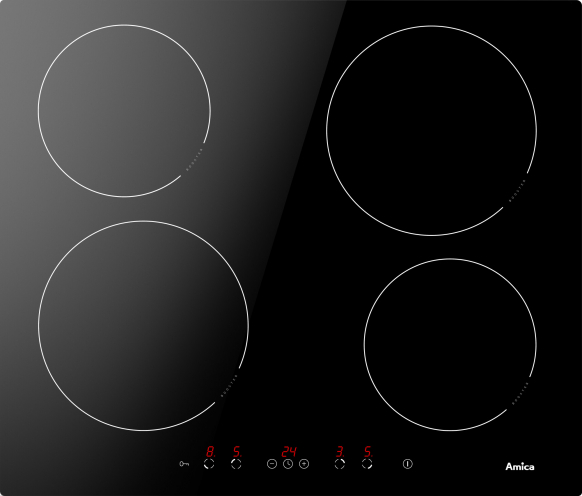

PI6540PTU / DI 6403 MB

PI6540PTU

Rapid preheating Yes

Bridge bay size (mm) No bridge box

ChildLock Yes

Energy saving Yes

Heat maintainer Yes

Hob finish No bevelled

Front left heating zone dimension (cm) 21

Left front zone energy consumption FL 188.9 Wh/kg

Front left heating zone power rating (kW) 2/2.8

Left front zone type FL Induction

Rear left heating zone dimension (cm) 16

Left rear zone energy consumption RL 188.9 Wh/kg

Rear left heating zone power rating (kW) 1.2/1.4

Left rear zone type RL Induction

Minute minder Yes

Number of Booster 4

Number of power levels 9

Overflow detection Yes

Overheat detection Yes

Power Choice Yes

Power Management Yes

Residual heat indicator Yes

Front right heating zone dimension (cm) 16

Right front zone energy consumption FR 188.9 Wh/kg

Front right heating zone power rating (kW) 1.2/1.4

Right front zone type FR Induction

Rear right heating zone dimension (cm) 21

Right rear zone energy consumption RR 188.9 Wh/kg

Rear right heating zone power rating (kW) 2/2.8

Right rear zone type RR Induction

ø 16 cm with Power Booster 2

ø 21 cm with Power Booster 2

Small object detection Yes

Temperature limiter Yes

Auto switch off Yes

Timer Yes

Hob energy consumption 188.9 Wh/kg

Control type Touch control

Power indicator lamp Yes

Frequency 50	Can be built flush with the top Yes	Connection type 3N~230/400 V
Cut out size - depth 49 cm	Cut out size - width 56 cm	Display color Red
Edge finish C-cut	Gross volume 0.0525 m³	Total power of hob 7.35 kW
In-furniture depth 5.4 cm	Net depth 52.2 cm	Net height 6 cm
Net weight 7.85 kg	Net width 59.2 cm	Number of heating elements 4
Position Of Connection Cable Middle - rear	Power Supply Voltage 230V / 400V	Power Supply Voltage 230_400V
Hob type Induction
